How to set the flight settings for the Mavic 3E when using Edge2.

Question

What is the recommended flight setting for the Mavic 3E when using Edge2？

Answer

Please refer to the this procedure.
Please refer to this procedure. This setting is recommended when using Edge2.

Enter the name of the flight plan.

*The name of the flight plan is used for the name of the photo folder on the SD card. Do not use the following characters.

Recommend flight setting

Setting​	Set to​
Camera​	DJI Mavic3E WIDE​
Terrain Follow​	Disabled​
Smart Oblique​	-​
ASL/ALT​	ALT​
Ortho GSD	1cm The altitude is automatically calculated according to the GSD. If you change the flight altitude, the GSD is automatically calculated.
Flight Route Altitude​	～70m (The most recommended is 37m)​
Takeoff Speed​	10m/s​
Speed​	11.2m/s (Max speed allowable)​ Maximum flight speed is not a problem but If high accuracy is desired, the speed must be reduced.
Elevation Optimization	Enabled Setting for oblique flight. Please switch ON for higher accuracy.
Upon Completion	Return To Home​
Advanced Settings​	Set to (Mavic3E)​
Overlap Rate (Side/Front)​	60/80 base tate
Margin​	Extend one lane beyond the measurement target area​
Photo Mode​	Distance Interval Shot​
Camera Settings​	Set to (Mavic3E)​
Camera Mode​	Shutter Priority​
Shutter​	1/1000​ To suppress motion subject blur, please set the shutter speed to 1/1000 (drone setting).
Dewarping​	Disabled​

Flight Plan Setting 1


Flight Plan Setting 2

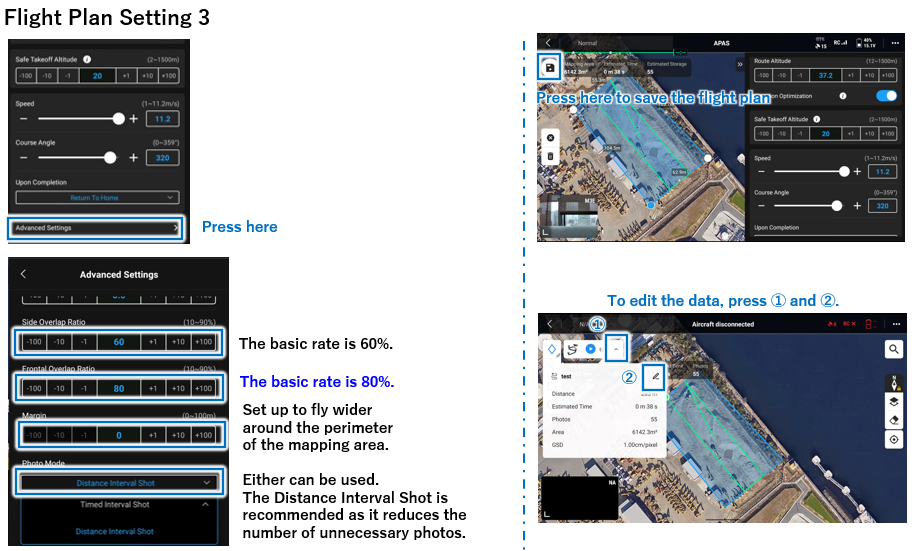

Flight Plan Setting 3

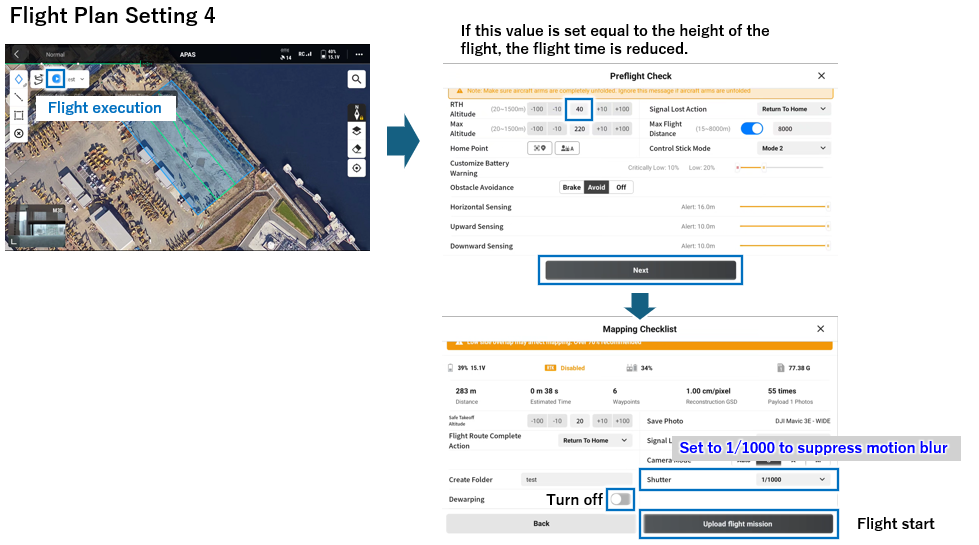

Flight Plan Setting 4



other

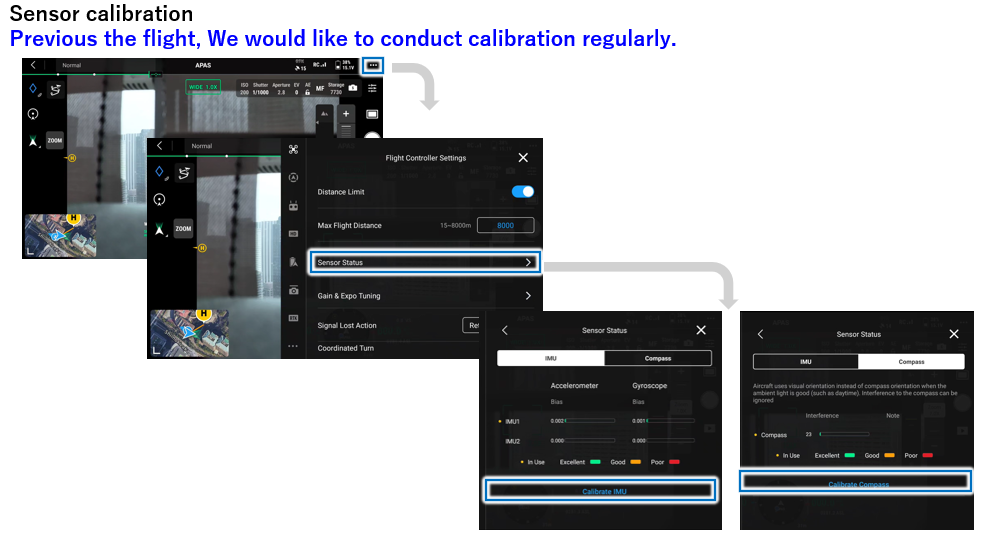

Sensor calibration
