How long does it take to process point cloud data?

Question

How long does it take to process point cloud data?
Is the time required known in advance?

Answer

The processing time depends on the settings of the point cloud results.

Please refer to the area, conditions and processing time measured for demonstration purposes.

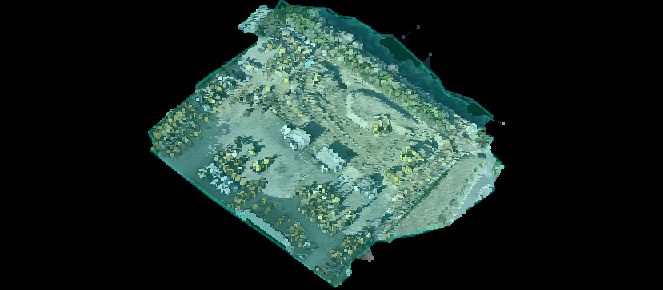

Area: Surveyed in an area of approximately 25,000㎡ (2.5ha)

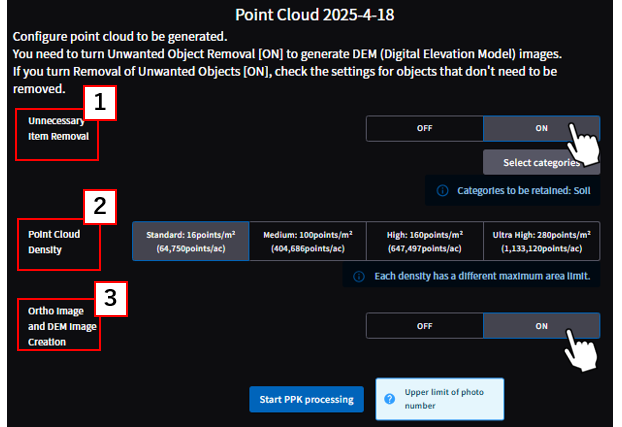

Processing method

Model: Mavic3E

Number of sheets: 45

【"1"Unnecessary Item Removal】:  ON

【"2”Point Cloud Density】: 16p/㎡

【”3"Ortho Image and DEM Image Creation】: ON

Time required: approx. 6 min.

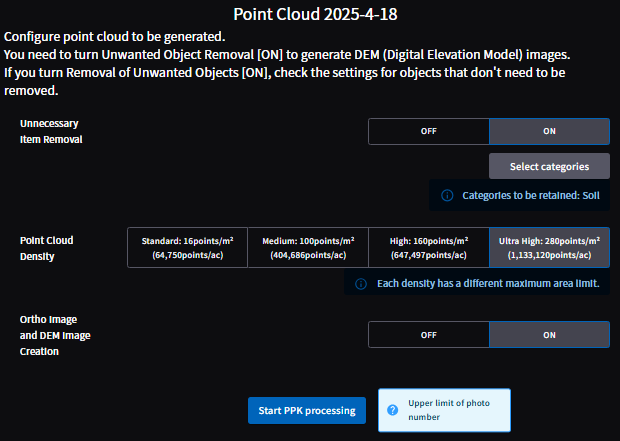

Processing method

Model: Mavic3E

Number of sheets: 45

Unnecessary Item Removal:  ON

Point Cloud Density: 280p/㎡

Ortho Image and DEM Image Creation: ON

Time required: approx. 37min.

Supplementation

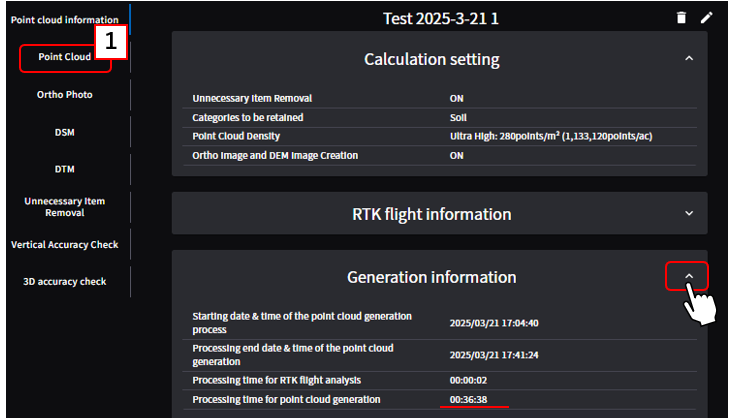

The processing time can be checked by clicking on the "Generation information."
*Estimated processing time is not displayed.
