To all Smart Construction Edge2 users
We are pleased to announce the release of new features and performance improvements for Smart Construction Edge2.
■Date and Time
Wednesday, May, 2025,
There will be no system downtime.
■Version Information
FW VERSION : “9.11.5.”
OS VERSION : “7.1.0.”
*It is recommended that the OSversion of IPAD be updated to IOS 18.2 or higher.
■Please refer to this link for updating procedure.
| No | Type | Function | Description |
| １ | improvment | Calculate cut and fill volumes from generated point clouds | Automatically calculate volume differences by extracting changes between the previous and current point clouds. This feature addresses requests to monitor earth volume even on the Edge tablet for simple progress management. |
| 2 | new | DJI Matrice 4E Support | Added SFM processing support for the new DJI Matrice 4E model. |
| 3 | improvment | Removal of Wi-Fi dongle usage restrictions | Lifted usage restrictions on Wi-Fi dongles by supporting faster devices like Archer T2U Nano, and added support for base station communication. |
| 4 | improvment | Retry upon error during base station communication | Improved to notify users in case of RTK correction data transmission interruption. |
| 5 | improvment | Edge/CloudSfM Integration | Added functionality to handle large areas that cannot be processed within Edge2 by using Cloud SfM processing to generate and display point clouds, validate accuracy, and upload the results. |
| 6 | improvment | Reflect projects created in Edge2 on the Dashboard | Added the ability to inherit projects to the Dashboard when they are first created in Edge2. |

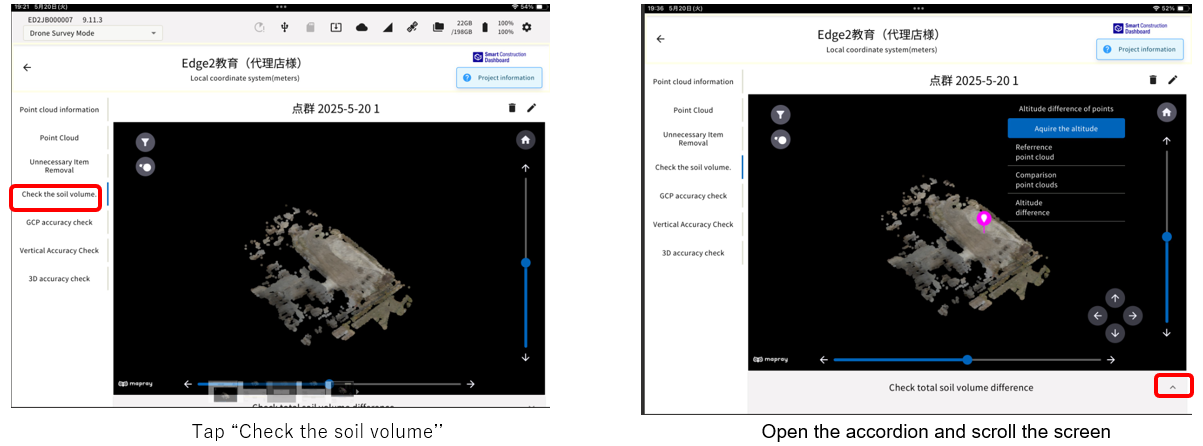

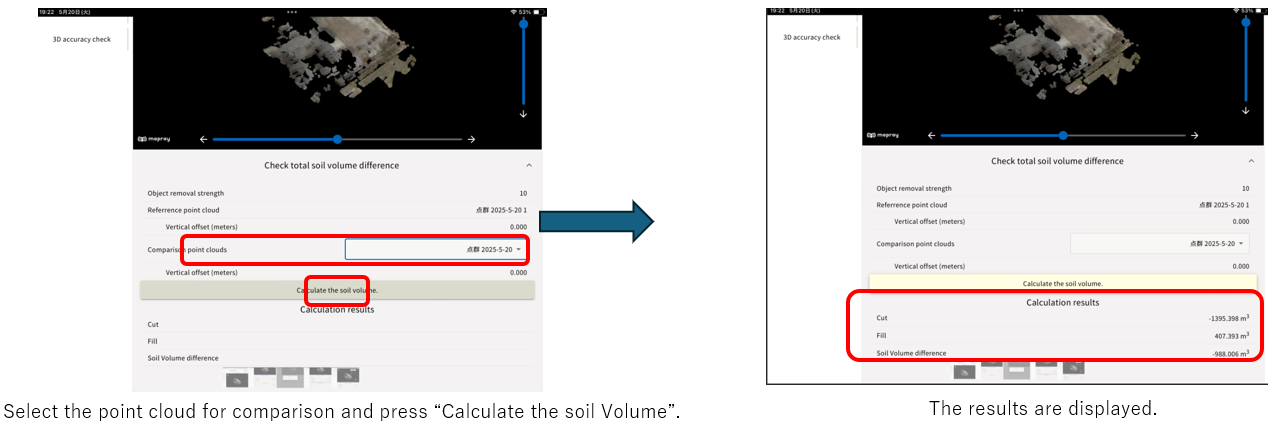

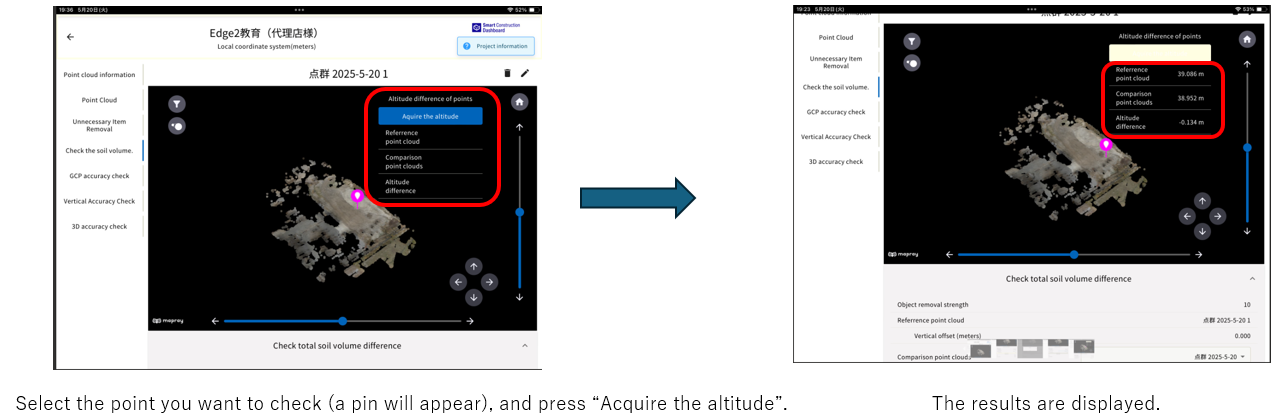

Added a function to calculate cut and fill volumes from generated point clouds Added operations related to volume calculation to the point cloud display screen (e.g., a "Volume Check" button)The volume calculation computes the total excavation (cut volume), embankment (fill volume), and their difference, and displays the result in the Edge2 app The volume difference at tapped locations on the point cloud is also calculated separately and displayed in the Edge2 app.

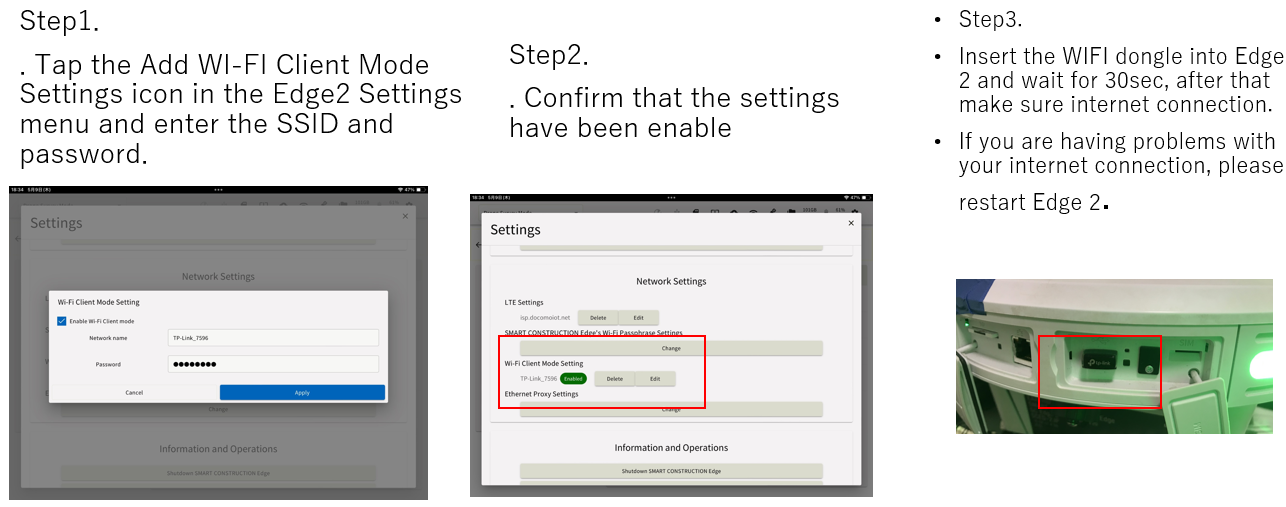

Supports correction data distribution via Wi-Fi dongle during base station broadcasting
No changes to the UI flow
The button label has been changed from “LTE” to “Ntrip Caster”; select “Ntrip Caster” when using a Wi-Fi dongle.

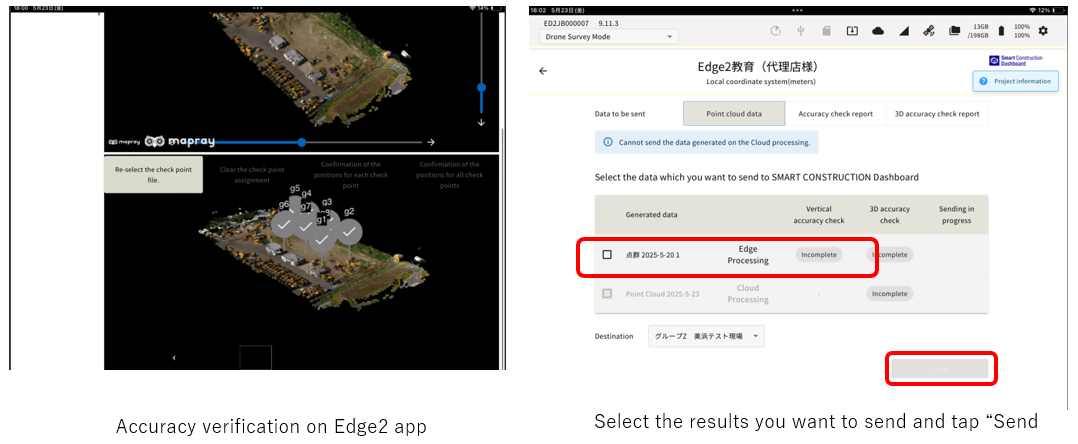

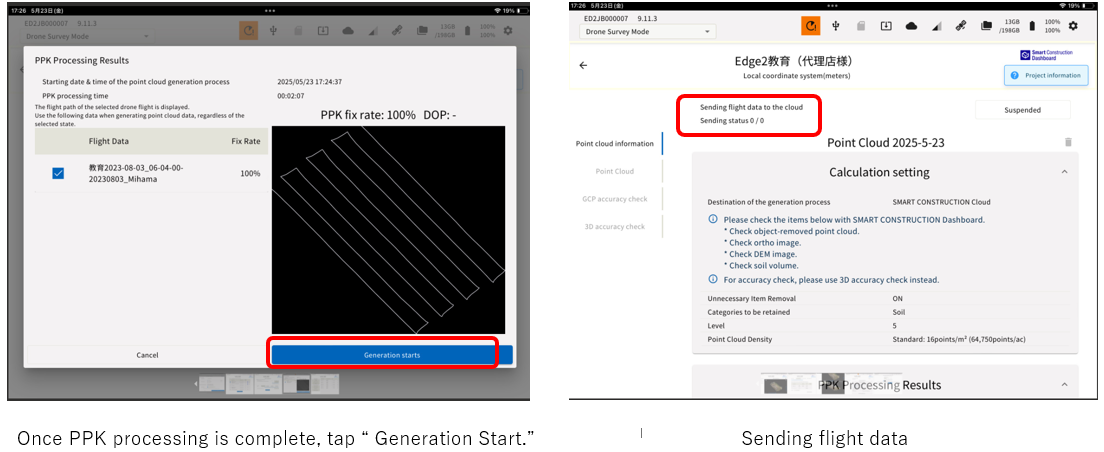

We have added a new feature that allows point cloud generation, visualization, and accuracy verification using Cloud-based SfM processing for large-scale sites that cannot be handled within Edge2.

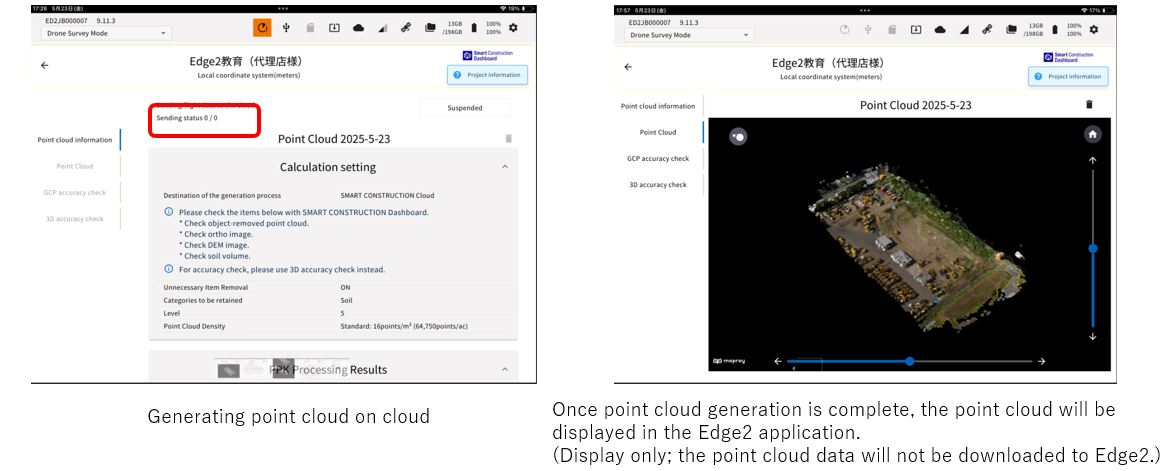

The SfM processing results (point clouds) completed on SC Cloud can be viewed in the Edge2 application.
The Edge2 application tracks the progress of SfM processing on SC Cloud until completion.

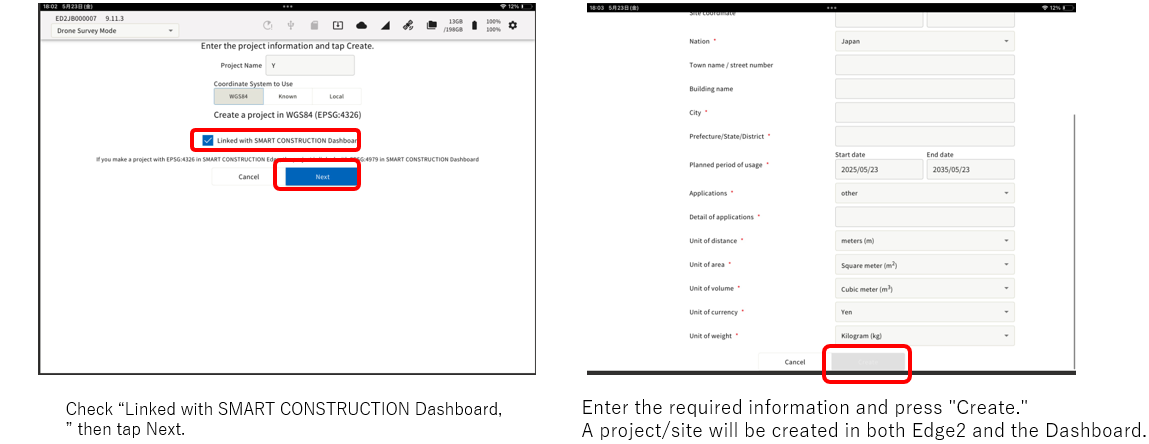

A new feature has been added to allow projects created first in Edge2 to be inherited by the Dashboard.
Enter the required information for creating a Dashboard project in the Edge2 application, and create the project on the Dashboard.
